Product information

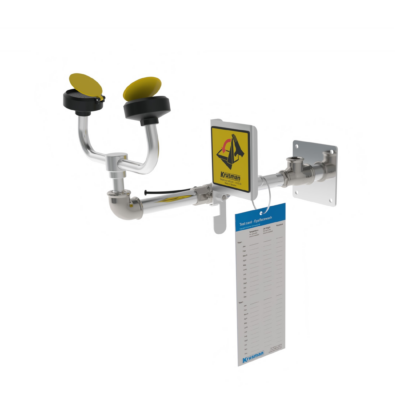

Eye-/facewash, wall mounted: Each spray head has an internal flow control and filter to remove impurities. Operated by a push plate, stay-open ball valve. The eye/facewash is self-draining. Delivered with collecting bowl in powder-coated stainless steel, pipes in galvanised steel, brass valve and wall bracket in aluminium. The water supply should be designed for a minimal flow of 28 l/min at a pressure of 2,4 bar.
Mount the unit approx. 1100 mm from the floor and up to the top of the eye wash spray head.
Emergency signs are enclosed with each safety station.
The product is also available in stainless steel: 3864-00
- Width: 380 mm
Height: 195 mm
Depth: 365 mm
Net weight: 3 kg - Eye-/facewash, wall mounted
3864
Flow rate: ca 28 l/min
Water supply: 1/2" female
Drain: 1 1/4" female - A luminous emergency sign is enclosed with each eye-/facewash.
